KT-15

KT-15

A modified small lathe which uses automotive air and hydraulic pressure system is specifically for small size workpiece turning. Multi turning function can process synchronize: surfacing and chamfering at the same time, then turning screwdriver head and grooving. Use rail carriage structure to increase process stability. Synchronous belt drives spindle to keep the headstock feeding. Process will be faster and more efficient.

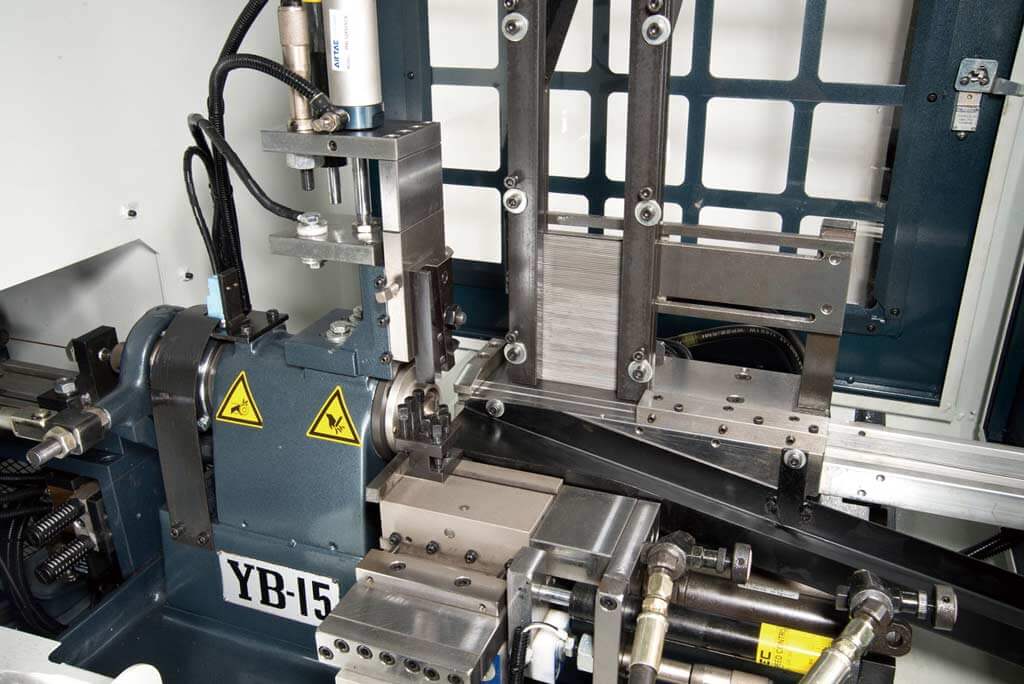

Closing up for Machining

Specifications

  KT-15
Workpiece Diameter: 3 - 10mm
Workpiece Length: 25 - 100mm
Material Type: Hex/ Square/Round
Collet Chuck: 15 type
Spindle Motor: 2HP
Hydraulic Motor: 1HP
Capacity (pce/min.): 12 - 25pcs.
Machine Size(LxWxH): 150x90x150
Machine Weight: 330kg

Accessories

Standard
Collet Chuck
Options
Vibration Bowl
Insert
Tool Holder
