KT-30/50/80 GNC

KT-30/50/80 GNC

Combine the traditional screwdriver forming machine and human machine interface system to control and replace the splitter angle milling of traditional mechanical structure. No need to open the clamp head to adjust bearing position to manufacture different screw heads. Simply use computer server system to control the cutting angle. The production process is simplify and more smooth.

Videos

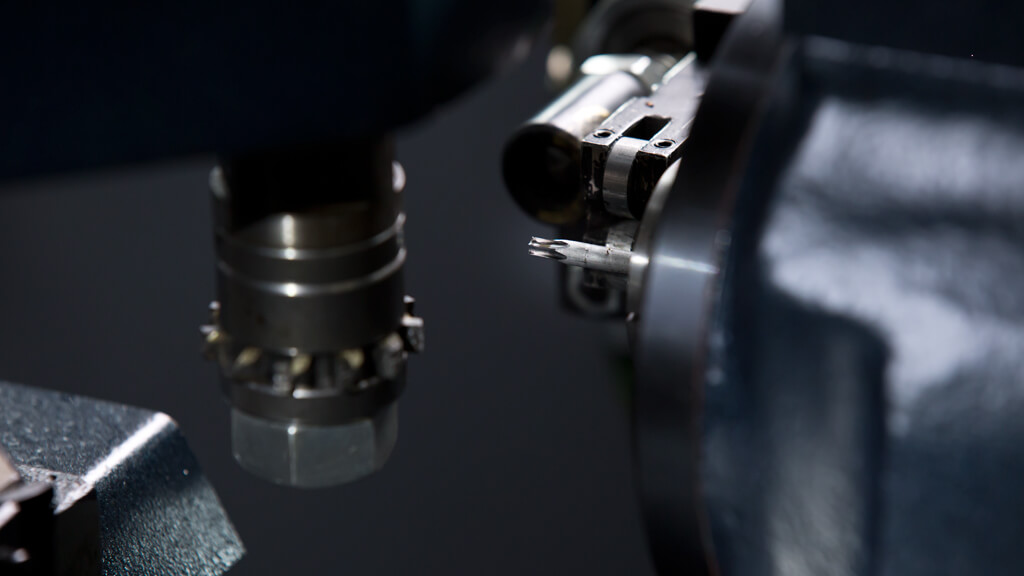

Closing up for Machining

Specifications

  KT-30GNC KT-50GNC KT-80GNC
Workpiece Diameter: 3 - 10mm 4 - 12mm 4 - 15mm
Workpiece Length: 25 - 100mm 80 - 250mm 110 - 350mm
Material Type: Hex/ Square/Round Hex/ Square/Round Hex/ Square/Round
Collet Chuck: 25 tyoe 25 type 25 type
Spindle Motor: 2HP 2HP 3HP
Hydraulic Motor: 1HP 1HP 2HP

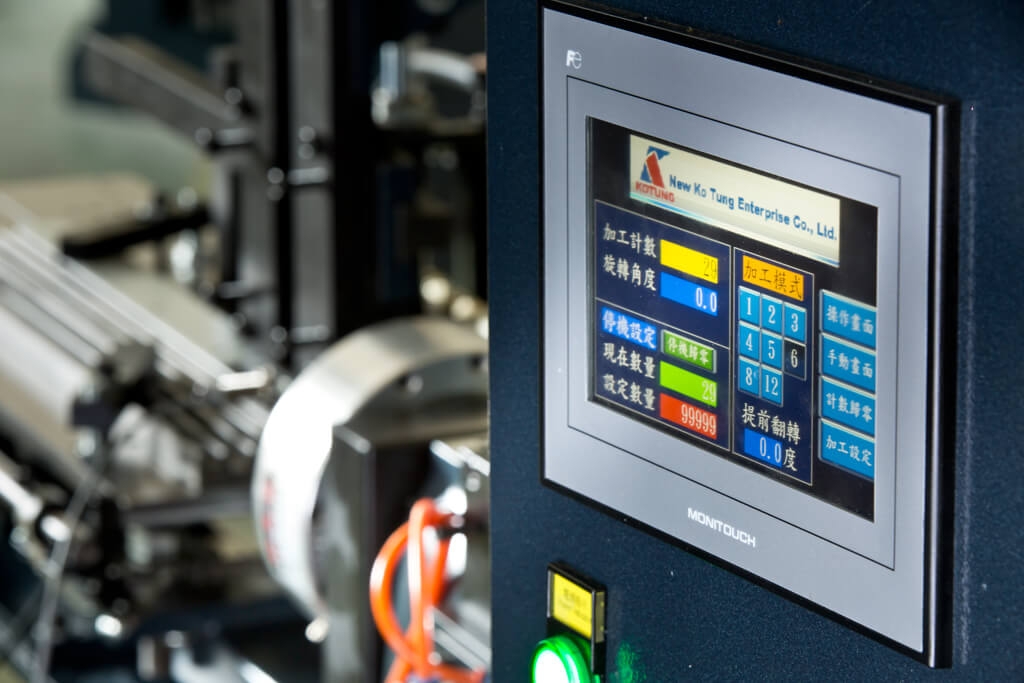

HMI Control System: HAKKO 7" HAKKO 7" HAKKO 7"
Capacity (pce/min.): 10 - 25pcs. 8 - 15pcs. 6 - 12pcs.
Complete Product Type: PH/SL/PZ/TORX PH/SL/PZ/TORX PH/SL/PZ/TORX
Machine Size(LxWxH): 170x110x155 170x120x160 180x120x170
Machine Weight: 500kg 550kg 600kg

Complete Product Type

Accessories

Standard
Material Tube
Collet Chuck
Options
Vibration Bowl

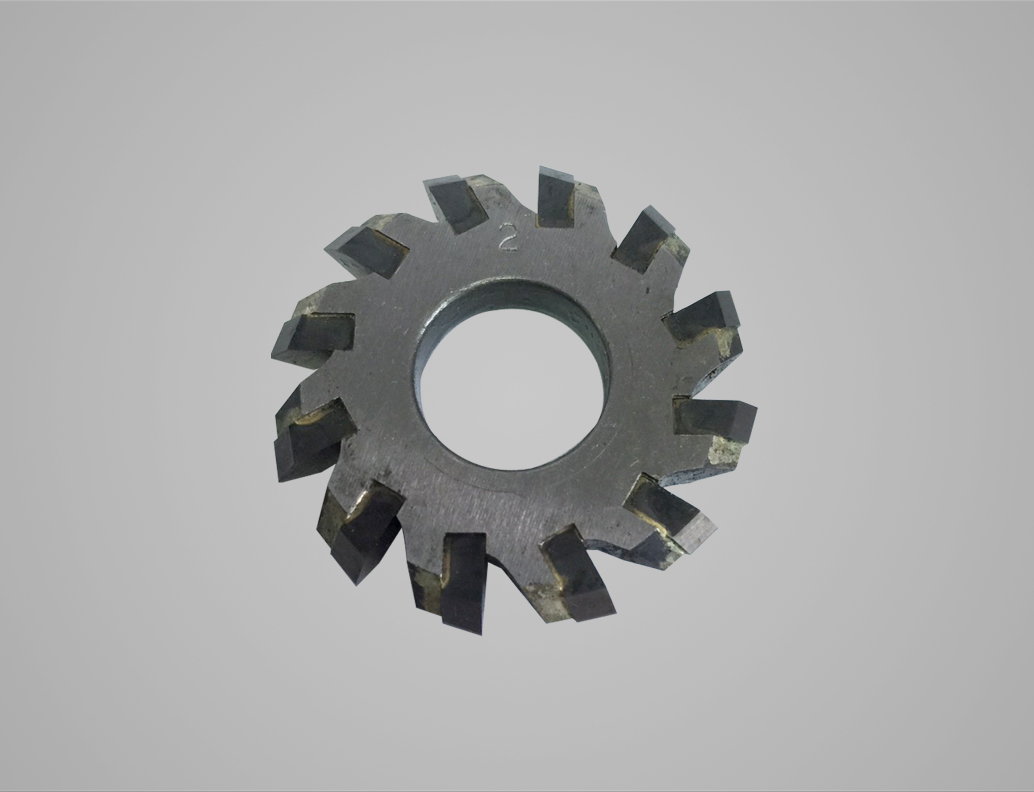

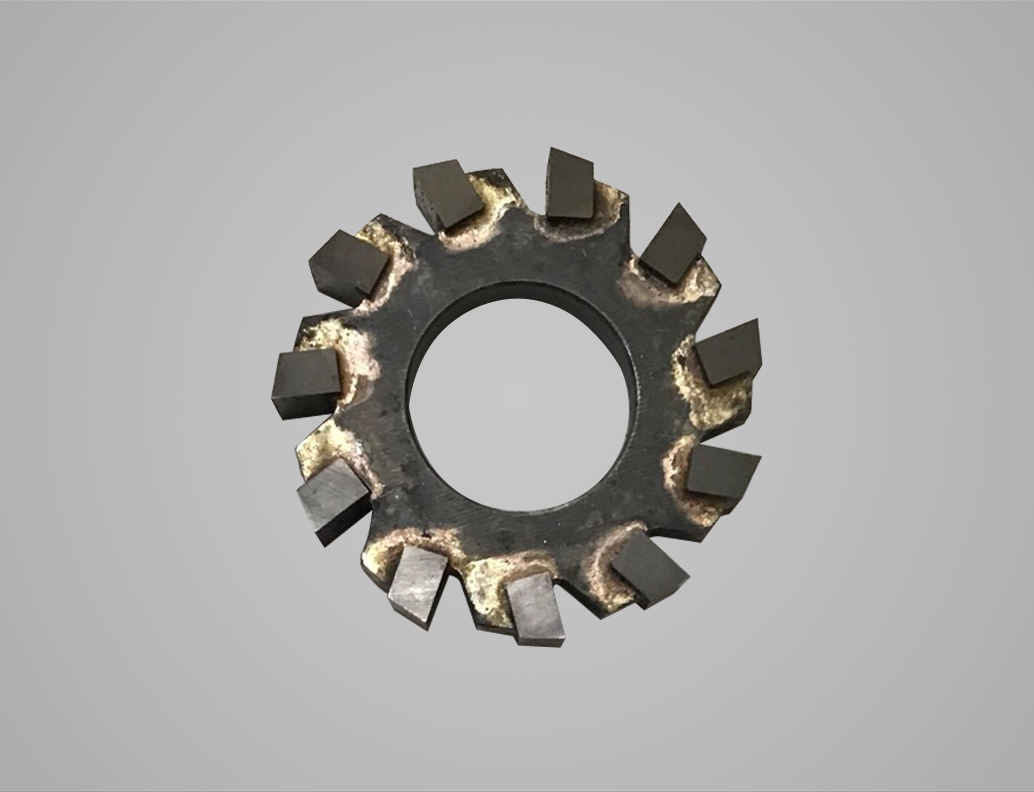

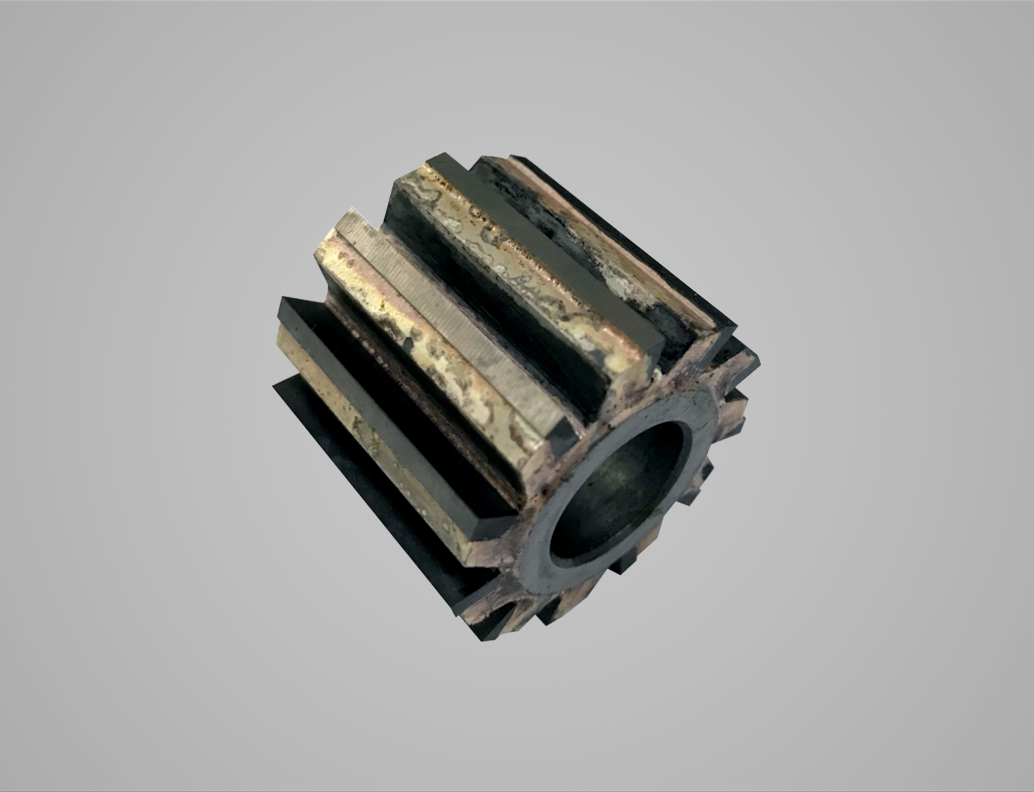

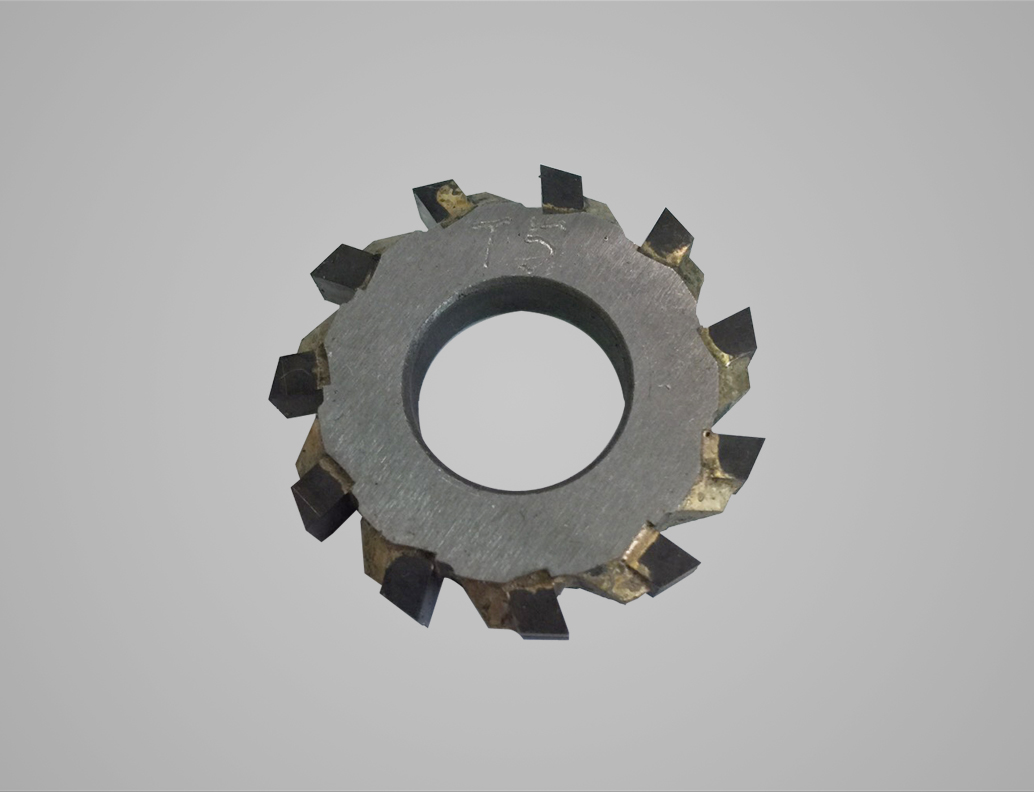

PH Cutter
Torx Cutter
SL Cutter
PZ Cutter
